40.00R57 Off the Road OTR Tires HA566 for Mining Haul Trucks

LUAN 40.00R57 Off the Road OTR Tires HA566 are the perfect union to guarantee the excellent wear resistance and heat dissipation.

Product Details
LUAN 40.00R57 Off the Road OTR Tires HA566 is the perfect union to guarantee the excellent wear resistance and heat dissipation.

Features:


1.The design of wide tread lugs contribute to better road holding. The bigger proportional tread block of HA566 make sure that tyre has better wear resistance and longer tyre life.
2.The tyre shoulder strengthen huge block to guarantee tyre running much stable and reduce the friction.
3.In the center of tyre crown, we apply longitudinal and transverse groove and good for heat dispersion.


Technical Data:


Technical Data

Tire Size

Unit

Dimensions of New Tire(mm)

Dimensions of In-service Tire

Rim

TKPH

Tread Depth

Overall Section Width

Section
Height

External Tire Diameter

Rolling Circumference

Inter capacity

(L)

Maximum Overall Section Width

Maximum External Diameter

Static Loaded Radius

Static Loaded Section Width

Minimum Dual Spacing

Standard

Optional

Average

40.00R57

mm
inches

85
3.35

1130
44.49

1060
41.73

3560
140.16

10084
397.01

5475

1215
47.83

3765
148.23

1605
63.19

1345
52.95

1380
54.33

29.00/6.0

32.00/6.0

980


Payload Limit Under Different Air Pressure

40.00R57

Air Pressure

kPa

475

500

525

550

575

600

625

650

675

700

725

psi

69

73

76

80

83

87

91

94

98

102

105

Payload Limit

kg

42500

45000

46250

48750

50000

51500

53000

54500

56000

58000

60000**

lbs.

93500

99000

102000

107500

110000

113500

117000

120000

123500

128000

132500**


Note:
1.The number in boldface means the HIGHEST payload of it's star class in the same cell;
2.When highest speed is 65 km/h, the payload should decrease 12% with the same pressure.


Photos:

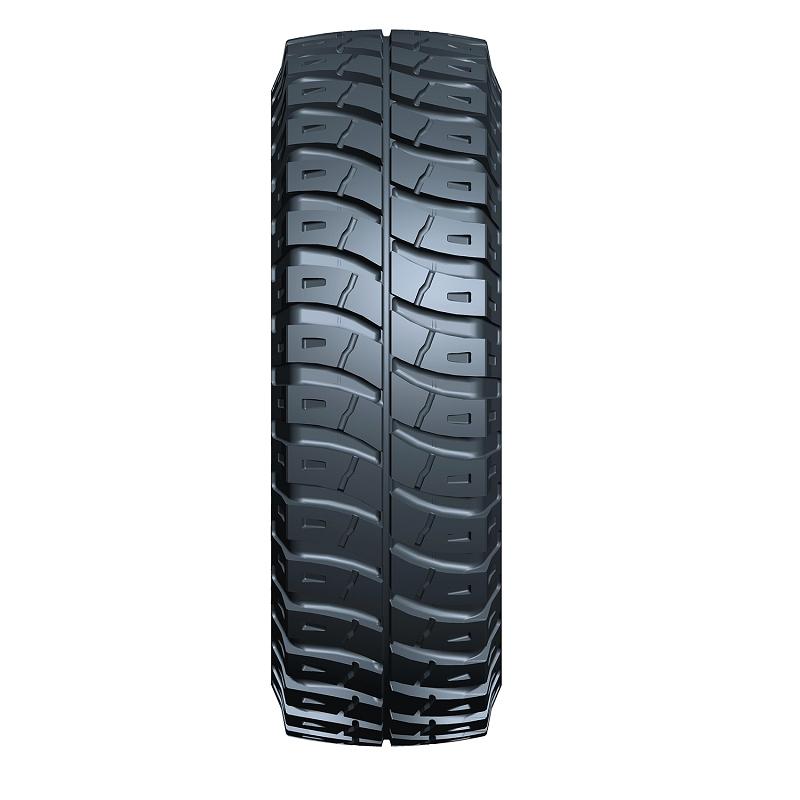

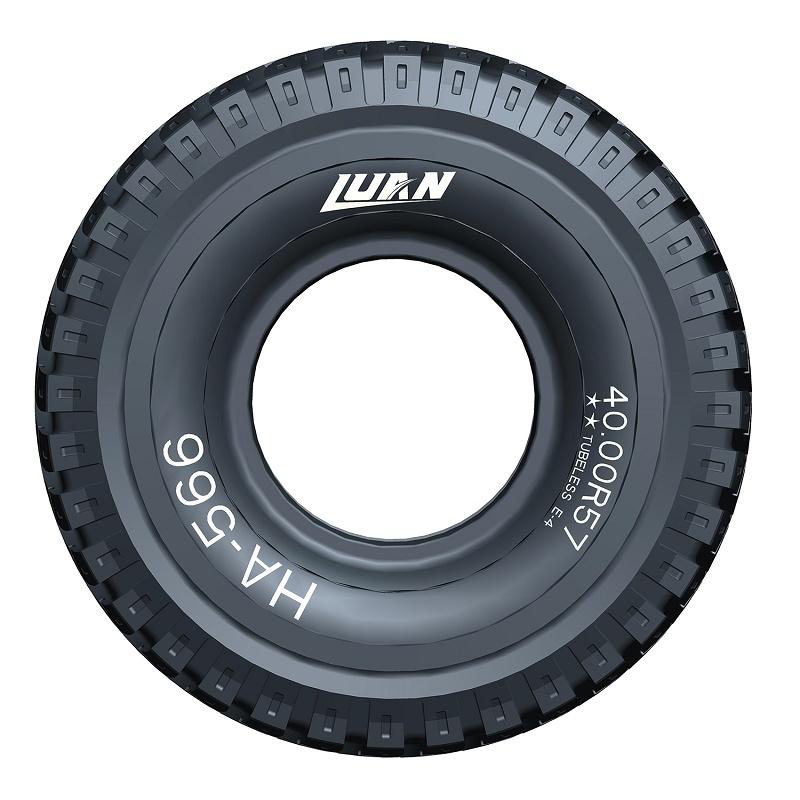

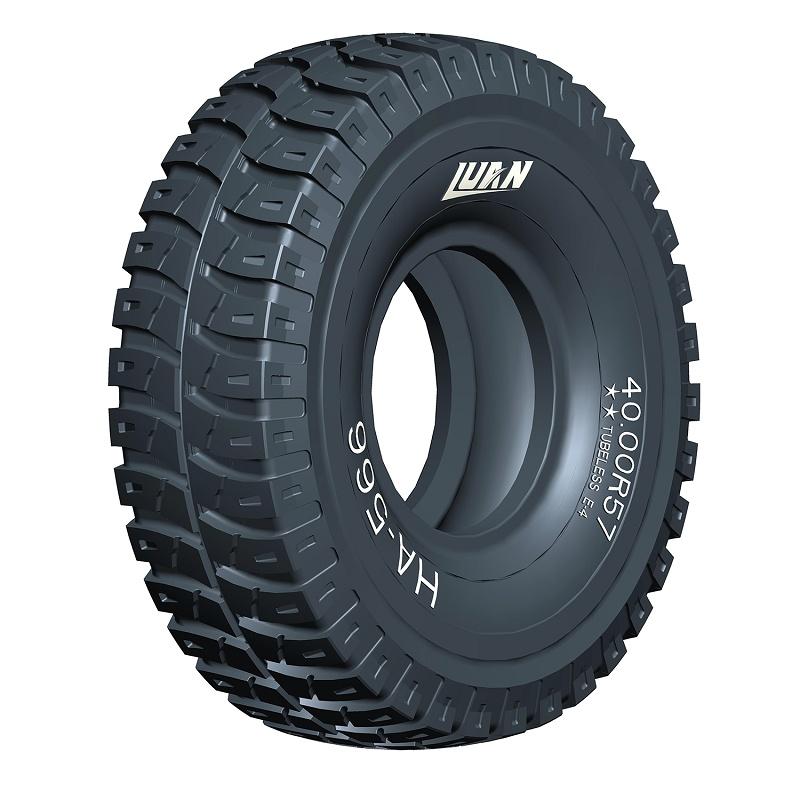

Wholesale Off Road TiresOff Road Tires 40.00R57
