HA686 Pattern LUAN 59/80R63 Mining Earthmover OTR Tyres feature wide tread blocks to provide excellent wear duration and are appropriate for various mine conditions.
Features:
1.Wider tread volume provide better running traction.
2.Better wear duration.
3.Applicable for various mine conditions.
Technical Data:
Technical Data
Tire Size
Unit
Dimensions of New Tire(mm)
Dimensions of In-service Tire
Rim
TKPH
Tread Depth
Overall Section Width
Section
External Tire Diameter
Rolling Circumference
Inter capacity
(L)
Maximum Overall Section Width
Maximum External Diameter
Static Loaded Radius
Static Loaded Section Width
Minimum Dual Spacing
Standard
Optional
Average
59/80R63
mm
88
1480
1217
4026
10870
10080
1650
4145
1730
1803
1870
44.00/5.0
**
1476
Height
inches
3.46
58.27
47.91
158.50
427.95
64.96
163.19
68.11
70.98
73.62
Payload Limit Under Different Air Pressure
59/80R63
Air Pressure
kPa
450
475
500
525
550
575
600
psi
65
69
73
76
80
83
87
Payload Limit
kg
80000
82500
87500
90000
92500
95000
100000**
lbs.
176500
182000
193000
198500
204000
209500
220500**
Note：
1.The number in boldface means the HIGHEST payload of it's star class in the same cell；
2.When highest speed is 65 km/h, the payload should decrease 12% with the same pressure.

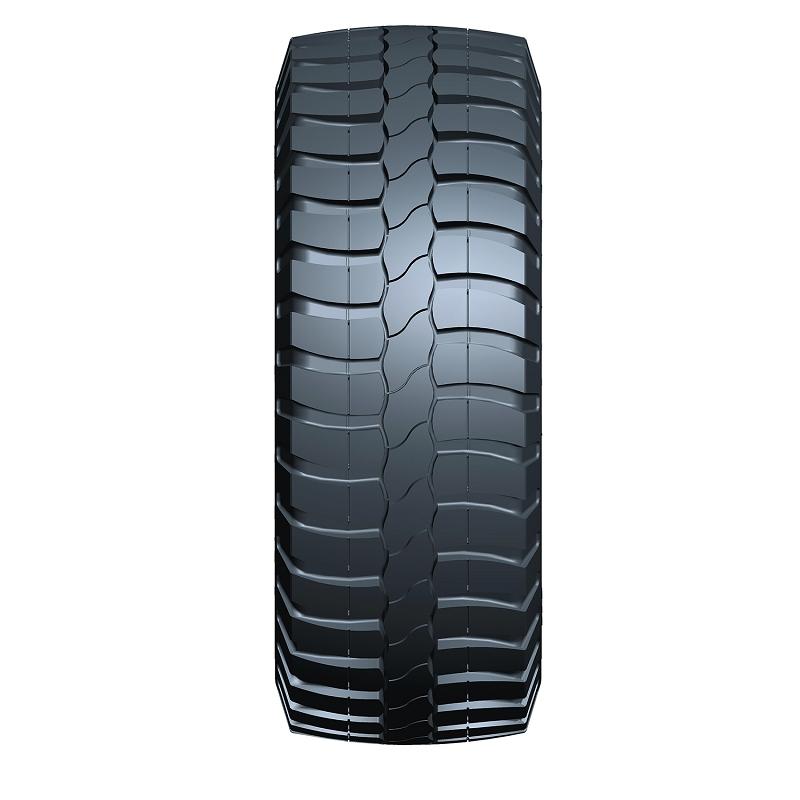

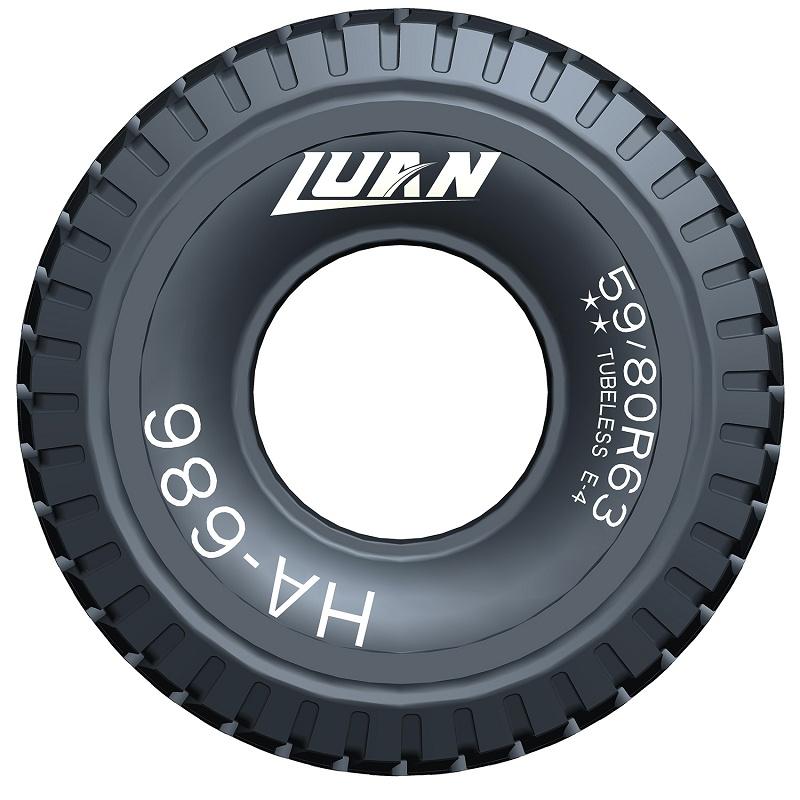

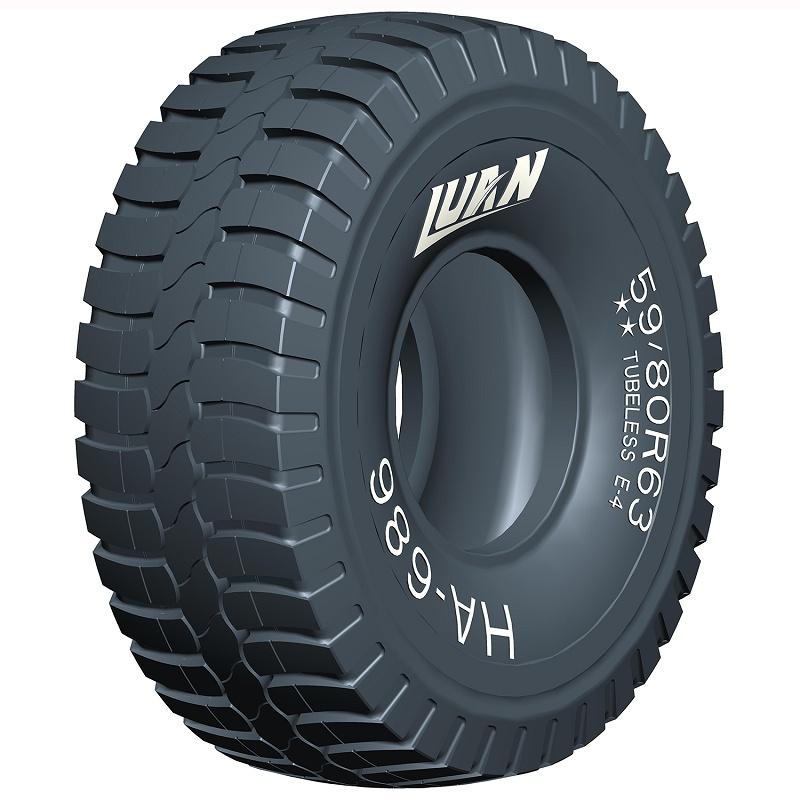

Photos:
