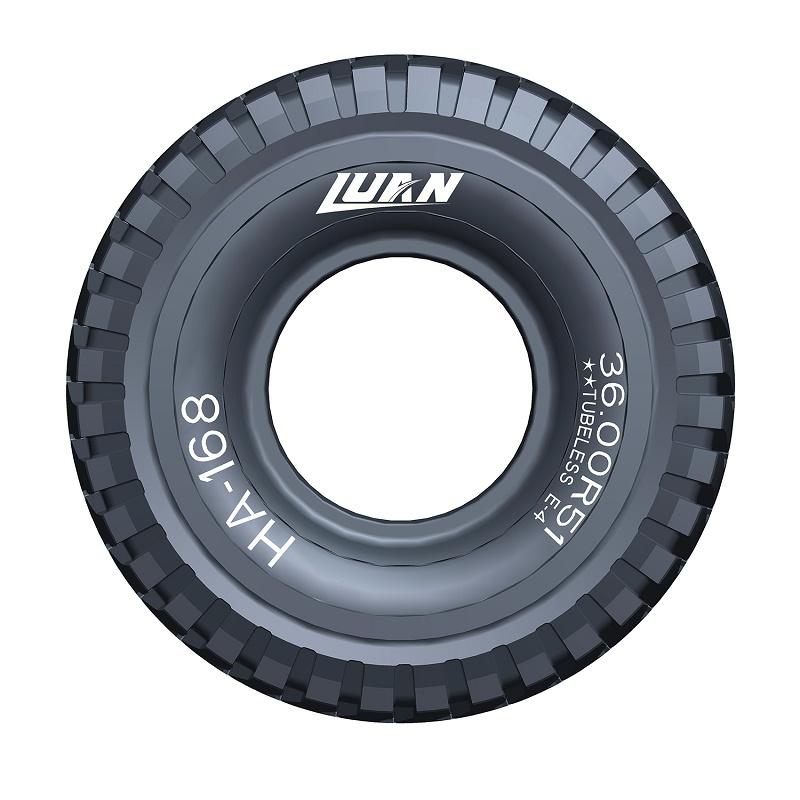

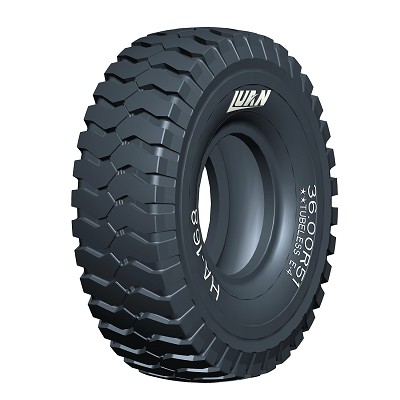

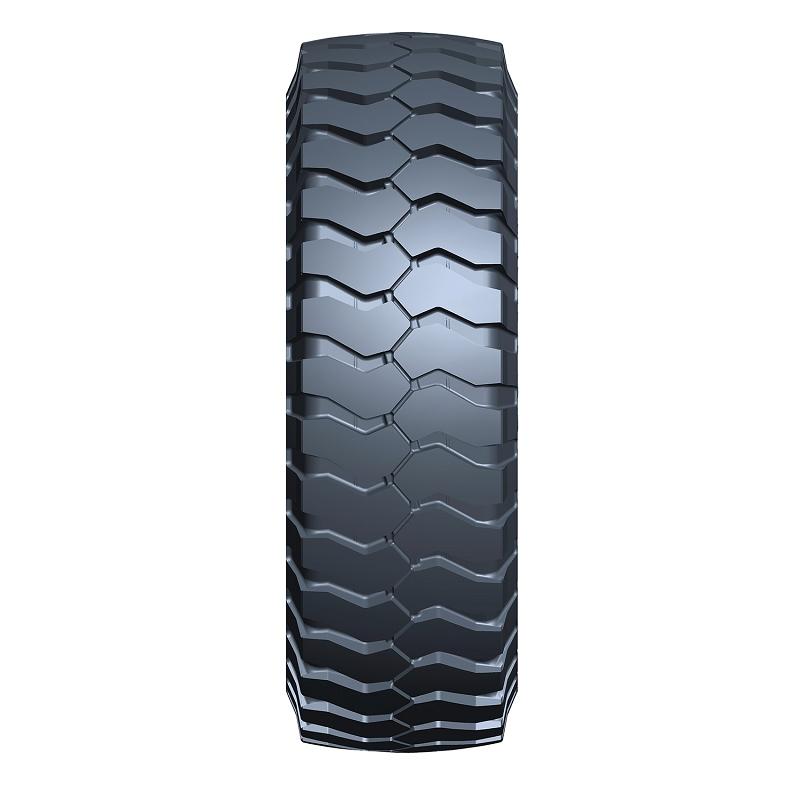

HA168 PATTERN LUAN 36.00R51 Mining OTR Tyres highlight better traction and cut resistance. Applicable for those mine sites which needs the excellent ability of heat dispersion and self-cleaning.
Technical Data:
Technical Data
Tire Size
Unit
Dimensions of New Tire(mm)
Dimensions of In-service Tire
Rim
TKPH
Tread Depth
Overall Section Width
Section
External Tire Diameter
Rolling Circumference
Inter capacity
(L)
Maximum Overall Section Width
Maximum External Diameter
Static Loaded Radius
Static Loaded Section Width
Minimum Dual Spacing
Standard
Optional
Average
36.00R51
mm
83
990
951
3194
8972
3840
1100
3390
1428
1159
1183
26.00/5.0
**
814
Height
inches
3.27
38.98
37.44
125.75
353.23
43.31
133.46
56.22
45.63
46.57
|
Payload Limit Under Different Air Pressure |
|||||||||||
|
36.00R51 |
Air Pressure |
kPa |
450 |
475 |
500 |
525 |
550 |
575 |
600 |
625 |
650 |
|
psi |
65 |
69 |
73 |
76 |
80 |
83 |
87 |
91 |
94 |
||
|
Payload Limit |
kg |
36500 |
37500 |
38750 |
40000 |
41250 |
42500 |
43750 |
45000 |
46250** |
|
|
lbs. |
80500 |
82500 |
85500 |
88000 |
91000 |
93500 |
96500 |
99000 |
102000** |
||
Note：
1.The number in boldface means the HIGHEST payload of it's star class in the same cell；
2.When highest speed is 65 km/h, the payload should decrease 12% with the same pressure.
