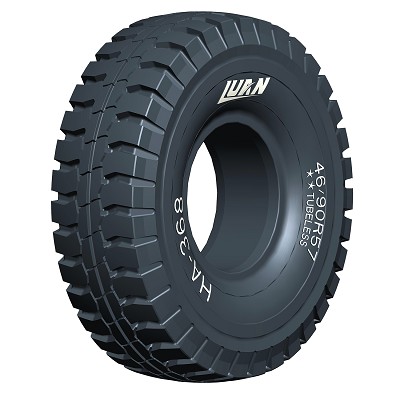

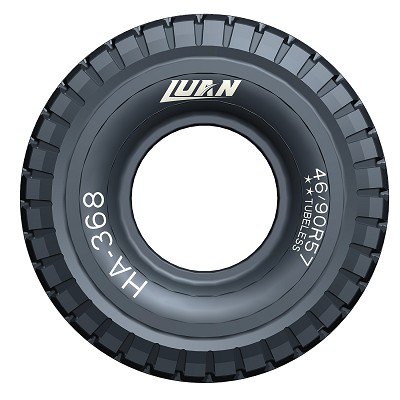

Giant 46/90R57 OTR Radial Tyre E4 for Mining Dump Truck is suitable for harsh operating conditions due to its excellent cut resistance and good traction.
Features:
1.The design of wide tread lugs contribute to better road traction and cut resistance.
2.Good driving performance reduces the uneven wear.
3.Heat dissipation and road traction makes longer life time and wear/cut resistance.
4.Reduce the cutting from rock.
Technical Data:
Tire Size
Unit
Dimensions of New Tire(mm)
Dimensions of In-service Tire
Rim
TKPH
Tread Depth
Overall Section Width
Section
External Tire Diameter
Rolling Circumference
Inter capacity
(L)
Maximum Overall Section Width
Maximum External Diameter
Static Loaded Radius
Static Loaded Section Width
Minimum Dual Spacing
Standard
Optional
Average
46/90R57
mm
85
1180
1060
3560
10040
5510
1285
3658
1598
1440
1467
29.00/6.0
32.00/6.0
990
Height
inches
3.35
46.46
41.73
140.16
395.28
50.59
144.02
62.91
56.69
57.76
Payload Limit Under Different Air Pressure
46/90R57
Air Pressure
kPa
450
475
500
525
550
575
600
625
650
675
700
psi
65
69
73
76
80
83
87
91
94
98
102
Payload Limit
kg
45000
47500
48750
51500
53000
54500
56000
58000
60000
61500
63000**
lbs.
99000
104500
107500
113500
117000
120000
123500
128000
132500
134500
139000**
Note：
1.The number in boldface means the HIGHEST payload of it's star class in the same cell；
2.When highest speed is 65 km/h, the payload should decrease 12% with the same pressure.
